Debugging PHP Code Running on WSL + Docker Using Xdebug in VSCode

ide vscode

This guide explains how to set up Visual Studio Code (VSCode) to debug PHP code running inside a Docker container on WSL using Xdebug.

Environment

• Windows 10 64-bit
• Ubuntu 22.04.3 LTS (running on WSL)
• Docker Engine 26.0.0
• PHP 8.2.15
• Visual Studio Code 1.87.2

Prerequisites

• You have a PHP project running in a Docker container on WSL (using Docker Compose).
  For instructions on setting up a Laravel project in this environment, see this guide.
• Visual Studio Code is installed.

Setup Steps

1. Connect to WSL in VSCode
2. Install Xdebug
3. Install the PHP Debug Extension in VSCode
4. Verify Xdebug Works

1. Connect to WSL in VSCode

For instructions on how to connect VSCode to WSL, see this article.

2. Install Xdebug

Install Xdebug in your Docker container.

Update docker-compose.yml to add the host definition.
Note: If you’re using Docker Desktop, this may not be necessary.

docker-compose.yml :

services:
  web:
    build: ./docker/web
    volumes:
      - .:/srv/example.com
    ports:
      - 8080:80
    extra_hosts:
      - host.docker.internal:host-gateway    # Add this line

Add Xdebug Configuration to PHP settings.
Create the following file.

99-xdebug.ini :

[xdebug]
zend_extension=/usr/lib64/php8.2/modules/xdebug.so    # Adjust path to actual .so file
xdebug.mode = debug    # Enables a remote debug
xdebug.start_with_request = yes    # Enables a remote debug
xdebug.client_host = host.docker.internal    # Set the host Xdebug connects
xdebug.client_port = 9003    # Set a port Xdebug connects
xdebug.log = /tmp/xdebug.log    # Set a log path

Note:
zend_extension: If you’re unsure of the path, install Xdebug manually in the container and check the correct path.
xdebug.client_host: The host Xdebug in a Docker container connects is the host running Docker, so specify host.docker.internal.
xdebug.client_port: Default port is 9003, but you can change it if needed.
xdebug.log: Set to any writable path in the container.

Add Xdebug installation to your Dockerfile. I used amazonlinux as a Docker image.

Dockerfile :

FROM amazonlinux:2023

...

# Install Xdebug
RUN yum -y install php-pear php-devel
RUN pecl install xdebug-3.3.1
COPY php/conf.d/99-xdebug.ini /etc/php.d/99-xdebug.ini    # Copy config file

...

Ensure the path in COPY matches where your 99-xdebug.ini is located relative to the Dockerfile.

Verify Xdebug Installation.
Connect to the container and run the following commands.

# php -i | grep xdebug

If you see Xdebug configuration listed, the installation was successful.

3. Install the PHP Debug Extension in VSCode

Install the PHP Debug extension in VSCode.

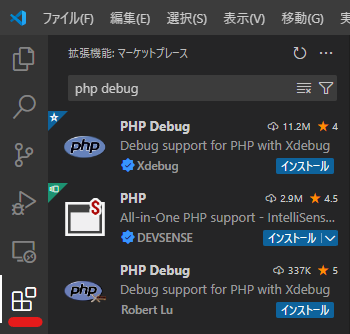

Open VSCode and click on Extensions.

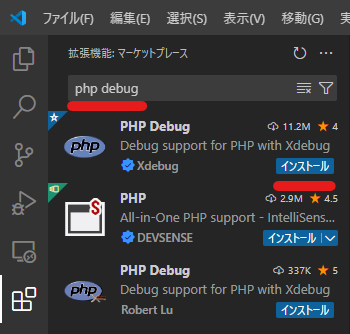

Search for php debug and install the one named “PHP Debug”.

Create launch.json.

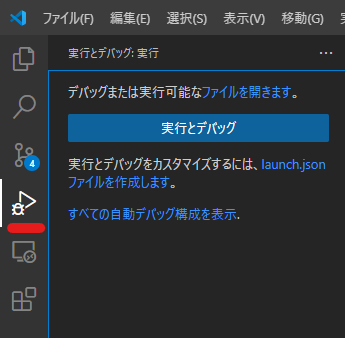

Click on “Run and Debug”.

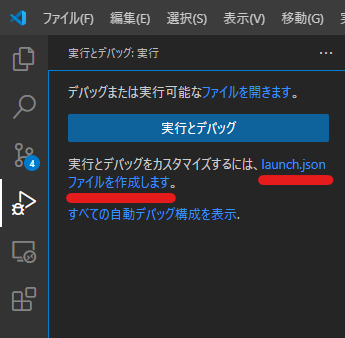

Click “Create a launch.json file”.

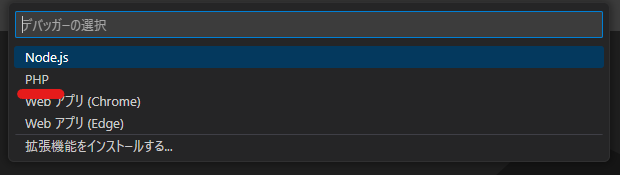

Select “PHP” as the debugger.

Add pathMappings to the generated launch.json.
This maps the directory inside the Docker container to your local workspace folder.

{
    ...

    "version": "0.2.0",
    "configurations": [
        {
            "name": "Listen for Xdebug",
            "type": "php",
            "request": "launch",
            "port": 9003,
            // Add pathMappings
            "pathMappings": {
                "/srv/example.com": "${workspaceFolder}"
            }
        },

    ...
    ]
}

Now the PHP Debug extension is configured and ready to use.

4. Verify Xdebug Works

Start Docker Container.

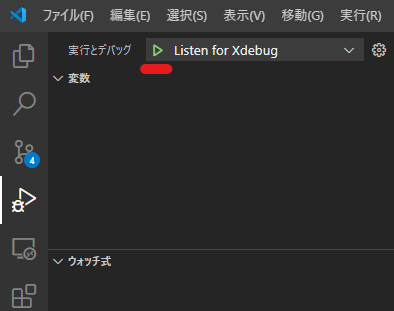

In VSCode, run the “Listen for Xdebug” configuration you created in launch.json.

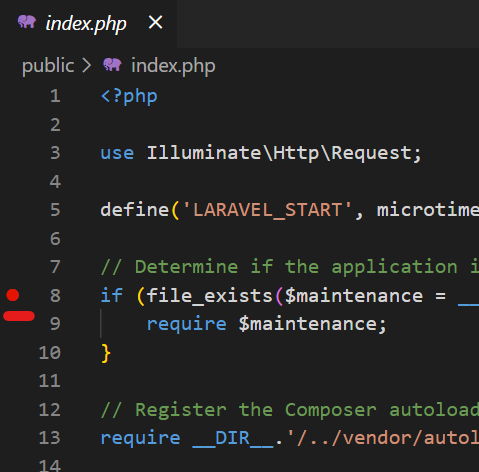

Open a PHP file that can be accessed via the browser and set a breakpoint.

Access the PHP file from your browser.

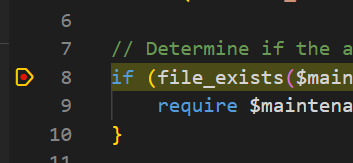

If the execution stops at the breakpoint, Xdebug is working correctly.
