aws ecs

This article explains how to view ECS logs in CloudWatch.

Thumbnail

References

Prerequisite

  • Your project is already deployed to ECS
    For more information, follow this instruction.

Configuration Steps

  1. Add logConfiguration
  2. Create VPC Endpoint
  3. Edit ECS Task Execution IAM Role

1. Add logConfiguration

Add a logConfiguration section to your task-definition.json file:

task-definition.json:

{
    "requiresCompatibilities": [
        "FARGATE"
    ],
    "family": "my-fargate",
    "containerDefinitions": [
        {
            "name": "my-container",
            ...
            // Add logConfiguration
            "logConfiguration": {
                "logDriver": "awslogs",
                "options": {
                    "awslogs-create-group": "true",
                    "awslogs-group": "my-log-group",
                    "awslogs-region": "ap-northeast-1",
                    "awslogs-stream-prefix": "my-container"
                }
            },
            ...

Here are the explanations for each option:

Option Description
awslogs-create-group When set to true, the log group is created automatically.
awslogs-group The name of the log group where logs will be sent.
awslogs-region The region where the log group exists.
awslogs-stream-prefix The prefix used for log streams.

2. Create VPC Endpoint

Create a VPC Endpoint for CloudWatch Logs if your ECS containers are in private subnets.

Go to VPC on AWS Management Console.
Click “Endpoints”.

VPC on AWS Management Console

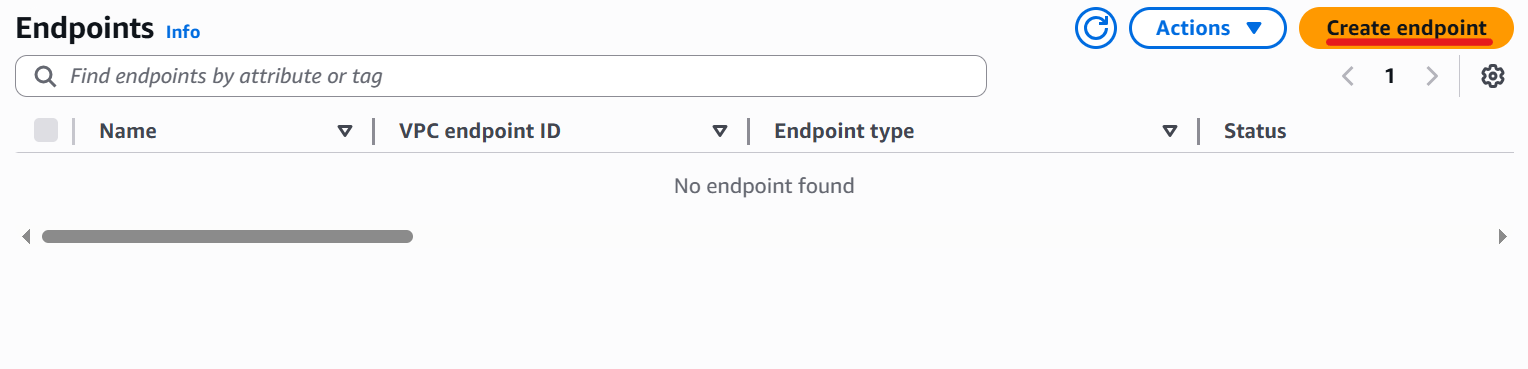

Click “Create endpoint”.

Endpoints

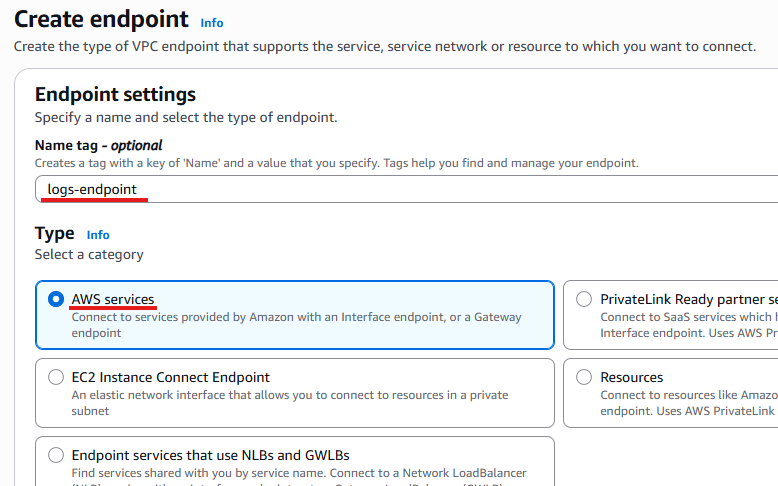

Enter a name and select “AWS services” for the Type.

Endpoint creation1

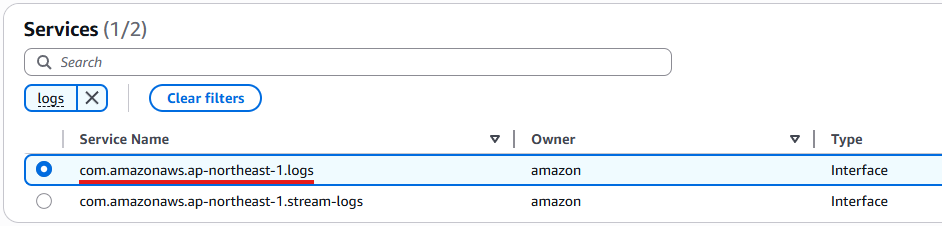

Choose com.amazonaws.region.logs.

Endpoint creation2

Select your VPC, private subnets and security group for private.

Click “Create endpoint”.

3. Edit ECS Task Execution IAM Role

Add a policy that allows the ECS task execution IAM role to create log groups.
For details about this IAM role, see this article.

Add a policy like the following:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "VisualEditor0",
            "Effect": "Allow",
            "Action": "logs:CreateLogGroup",
            "Resource": "arn:aws:logs:<Your log group region>:<Your Account ID>:log-group:*"
        }
    ]
}

If your ECS task execution IAM role doesn’t include logs:CreateLogStream and logs:PutLogEvents, you may need to add them to the policy above.

Once everything is set up, you should be able to view ECS logs in CloudWatch after deploying your service.
